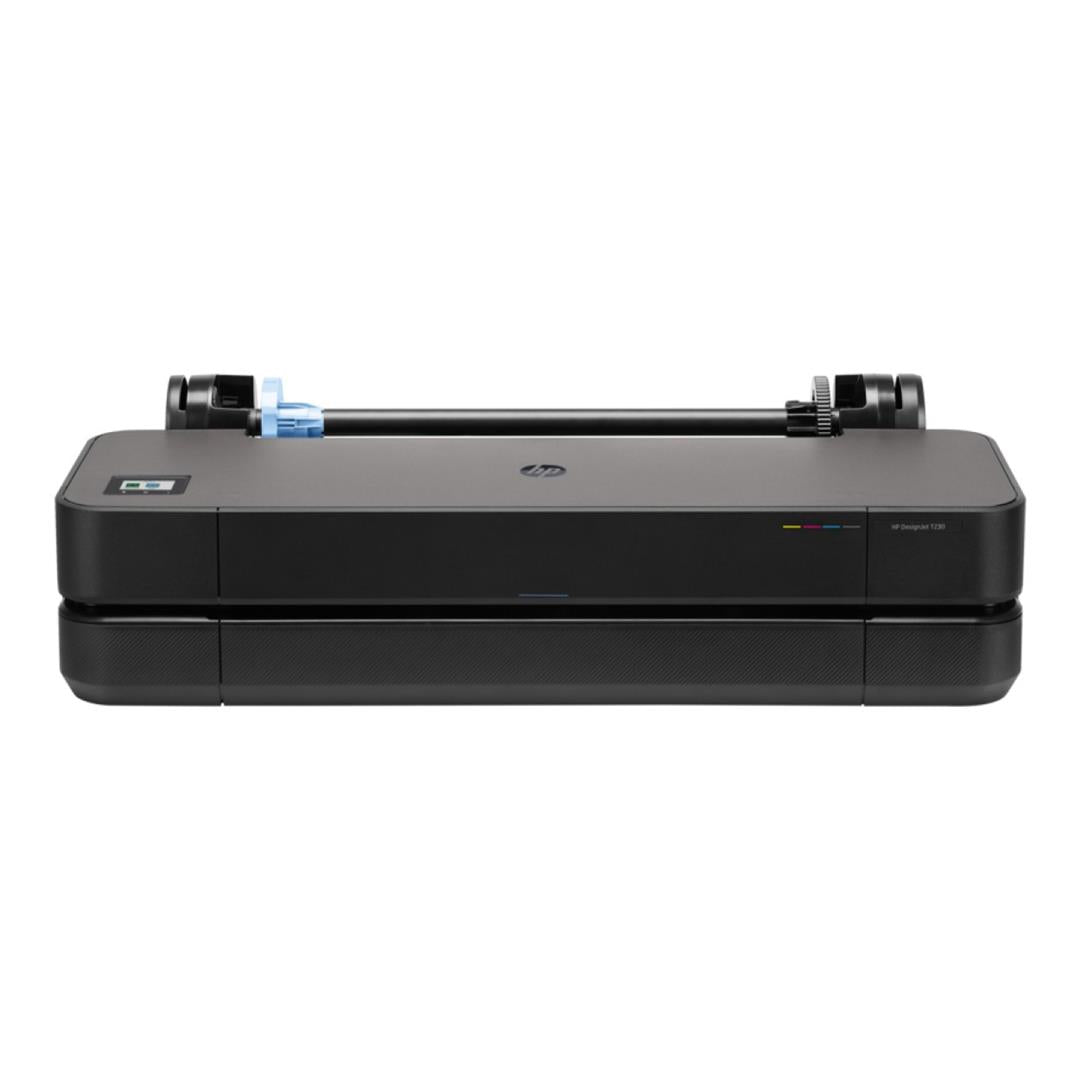

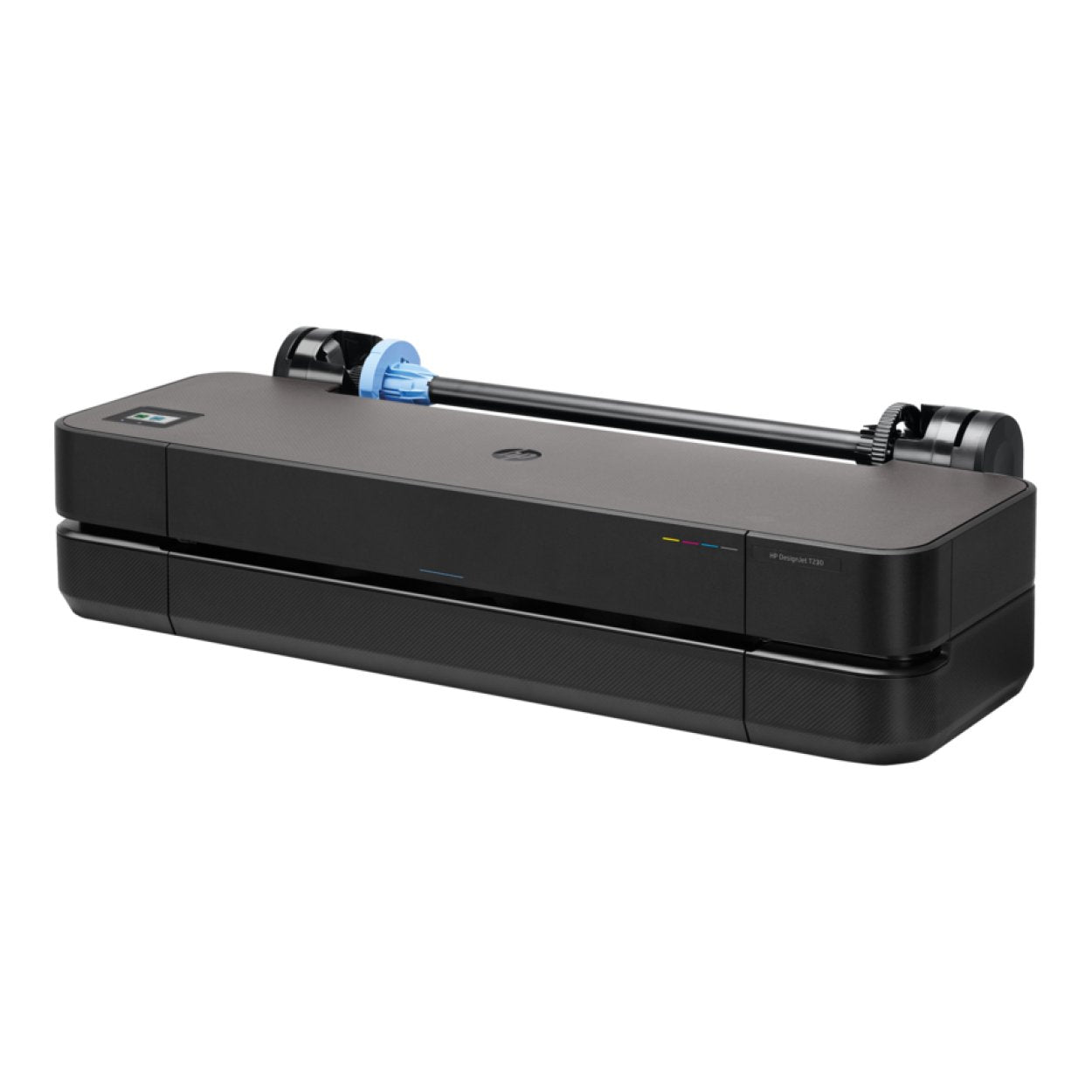

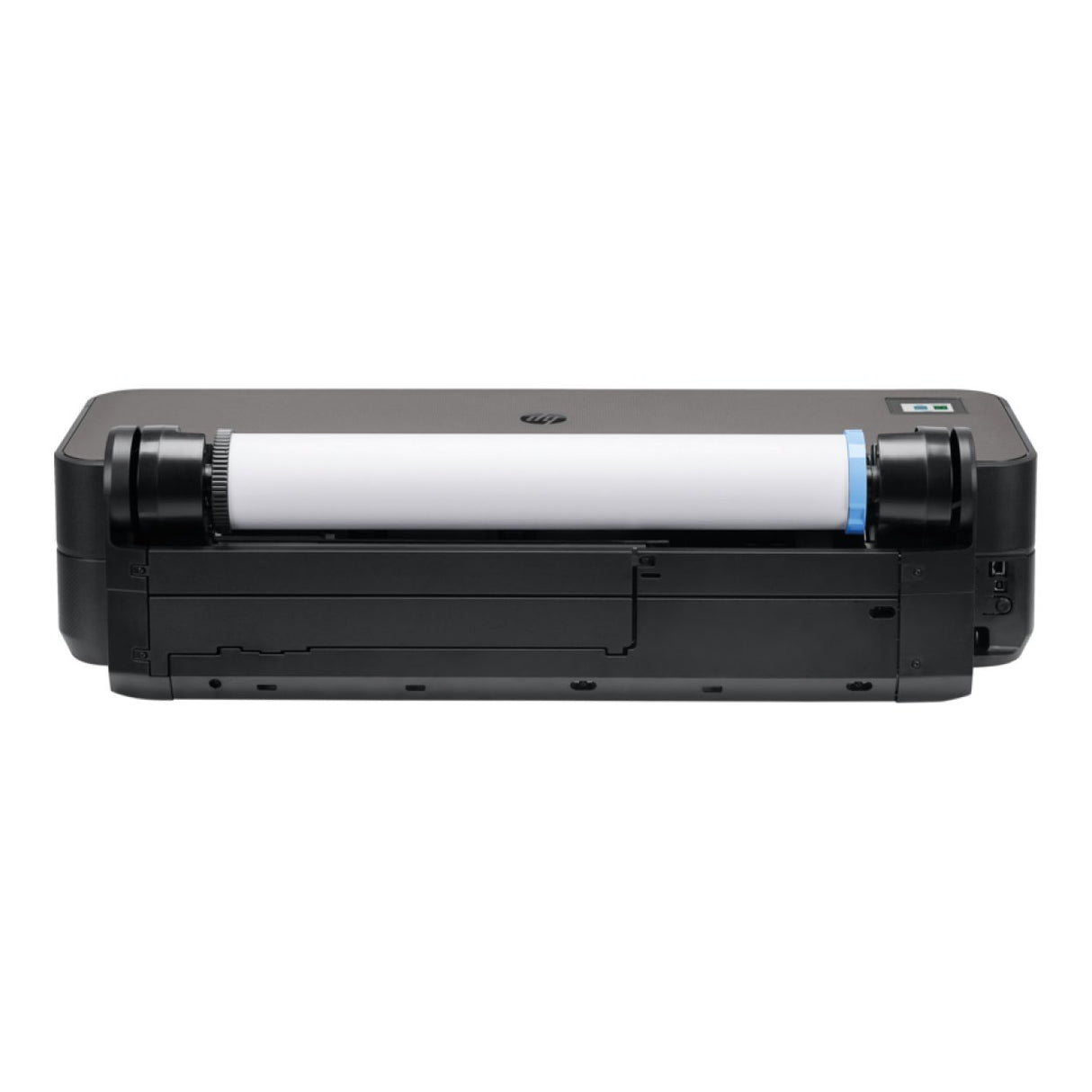

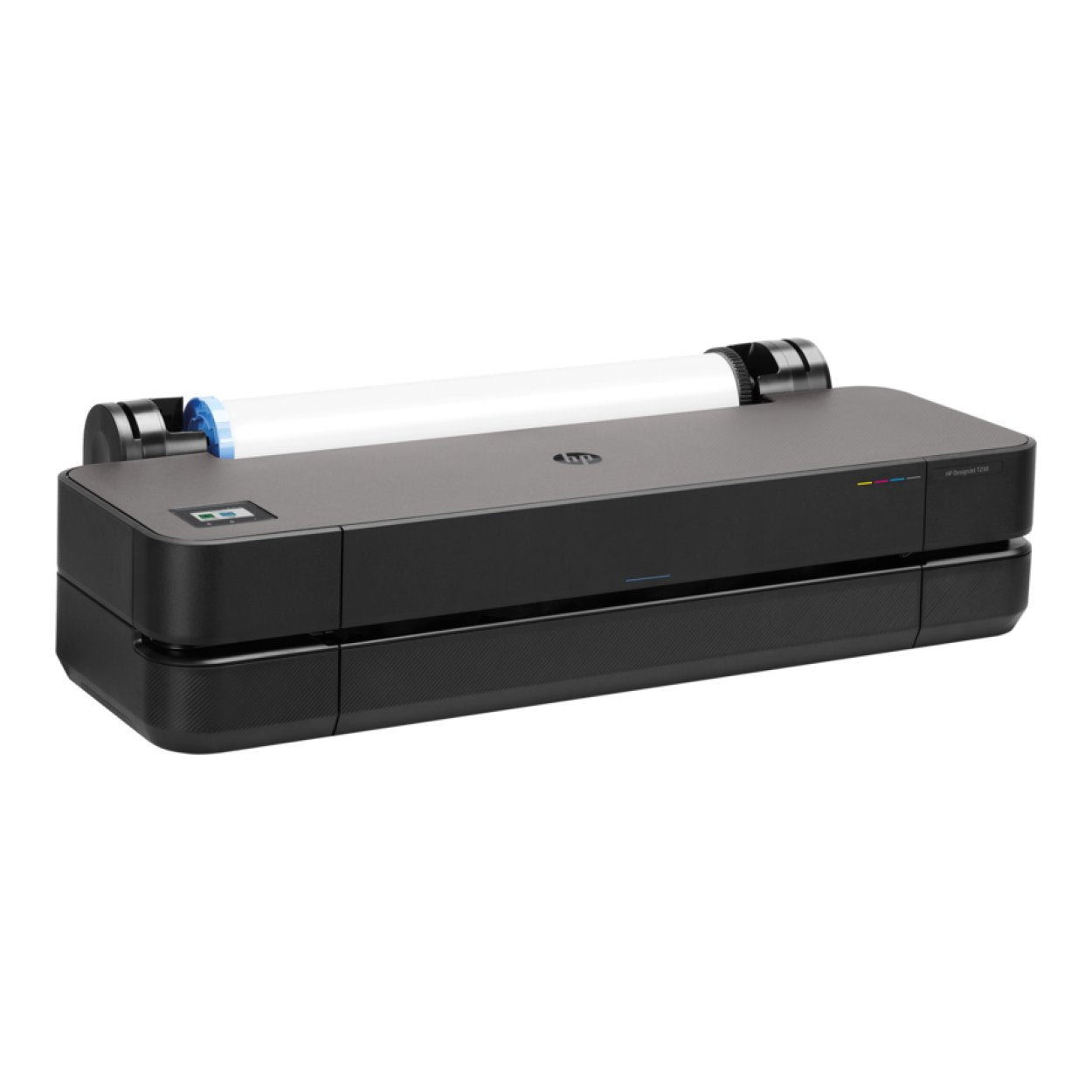

HP Designjet T230 24-inch Large Format Inkjet Printer 5HB07D
Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions. It's responsibly designed to help you save energy and reduce plastics use . Plus, it’s compact and adaptable to fit the way you work.
-
Print speed: 35 sec/page on A1, 68 A1 prints per hour
-
Model size: 610 mm
-
Print quality color (best): Up to 2400 x 1200 optimised dpi
-
Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
-
Print technology: HP Thermal Inkjet
-
Dimensions (W x D x H): 1013 x 440 x 285 mm
-
Weight: 21.5 kg
INTUITIVE—Easy, effortless printing
RESPONSIBLY DESIGNED—Reduce energy and plastic use
OPTIMIZED—Fits the way you work
Specifications
Product: HP DesignJet T230 24-in Printer 2025 edition
Functions: Print
Print speed: 35 sec/page on A1, 68 A1 prints per hour
Ink drop: 5.5 pl (C, M, Y); 12 pl (K)
Print head nozzles: 1376
Print cartridge/bottle volume: 80 ml (K); 38 ml (K); 29 ml (C, M, Y) per cartridge
Ink types: Dye-based (C, M, Y); pigment-based (K)
Print Cartridges/Bottle, Number: 4 (C, M, Y, K) cartridges
Print heads: 1 (cyan, magenta, yellow, black)
High capacity of page yield (colour): 20 ml of ink yields 101 A1 pages, taking into account maintenance routines
Print Cartridge/Bottle, Color(s): Cyan, magenta, yellow, black
Print quality color (best): Up to 2400 x 1200 optimised dpi
Maximum optical density (black): 8 L* min/2.10 D
Finished output handling: Sheet feed, roll feed; automatic horizontal cutter
Media sizes standard (metric rolls): 279 to 610 mm
Roll external diameter: 100 mm
Roll maximum input: 1
Roll maximum weight: 4.1 kg
Recommended media: Q1396A HP Universal Bond Paper (FSC® certified) (recyclable) 610 mm x 45.7 m;C6019B HP Coated Paper (FSC® certified) (recyclable) 610 mm x 45.7 m;C6029C HP Heavyweight Coated Paper (FSC® certified) (recyclable) 610 mm x 30.5 m
Media thickness: Up to 11.8 mil
Media thickness maximum (metric): Up to 0.3 mm
Media width, maximum: 610 mm
Supported Primary Applications: Line drawings; Presentations; Renderings
Non-printable area (cut-sheet): 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media): 5 x 5 x 5 x 5 mm
Media sizes, custom: 210 x 279 to 610 x 1897 mm
Media sizes supported: A4, A3, A2, A1
Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended: 60 to 280 g/m²
Model size: 610 mm
Internal Storage: None
Line accuracy: ±0.1%
Printer drivers included: Raster driver for macOS and Windows, HP Click Driver for Windows 11
Print languages: JPEG, URF
Print technology: HP Thermal Inkjet
Theoretical minimum line width: 0.02 mm
Printing path: HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Security features: HP Wolf Essential Security: Secure boot with HW root of trust; Firmware Code Signature Validation; Automatic FW Updates; HTTPS Redirect enabled by default; SNMPv1/2 read-only by default; SNMPv3 disabled by default; Write-protected memory; HP Cartridge Security; Unique password; Disable USB ports; TLS 1.2; 802.1x; IPv4 & IPv6 Compatibility; CA/JD Compatibility
Remote print enabled: Yes
Print multi-size files in one click: Yes
Dimensions (W x D x H): 1013 x 440 x 285 mm
Weight: 21.5 kg
Memory: 512 MB
Energy star certified: Yes
